Light Steel Stud Roll Forming Machine , 5.5 Kw Industrial Metal Roll Forming Machine

0.4-0.7mm Forming Material Thickness Light Steel Stud Roll Forming Machine With 2 Lines Of Roof Batten Profiles

Main Techncial Specifications

1). Material thickness: 0.3-0.7mm, Galvanised coil

2). Material width: depend on customer’s requirement

3). Decoiler Type: manual or automatical type ( depend on customer’s requirement )

4). Main Motor Power: 5.5 Kw

5). Hydraulic Motor Power: 4.0 Kw

6). Forming Station: about 14 ( depend on profile drawing )

7). Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.

8). Main Axis Material: High grade 45#, quenched and heat treatment.

9). Axis Diameter: ¢ 70mm

10). Working Speed: 0-15 m/min

11). Transporting Type: Chain Transmission

12). Heat Treatment of Cutting Blade: HRC 50-60

13). Type of Cutting: Hydraulic cutting

14). Material Of Cutting Blade: C r 12

15). Machine Frame stand: Welded structural steel

16). Electrical Control: PLC Frequency Control System with touch screen

17). PLC: PANASONIC Brand

18). Encoder: OMRON Brand

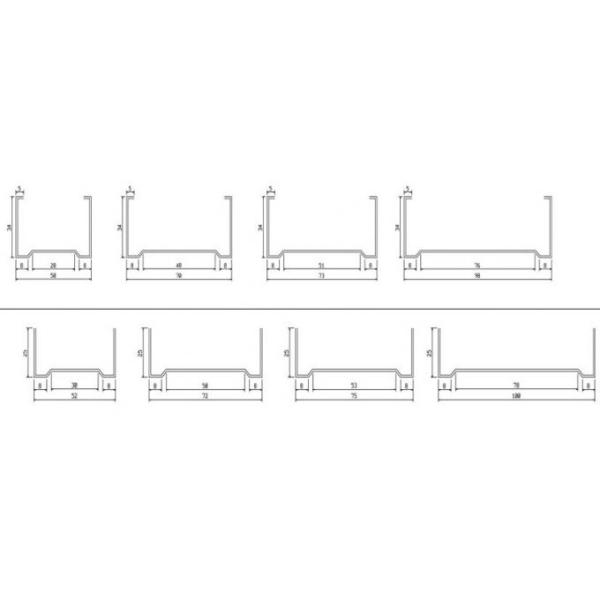

Reference Profile Drawing & Finished Sample Sheets

Working Flow Chart

Manual Decoiler → Pinch Feeding → Main Roll Forming → Hydraulic Cutting → Support Table

Applications

Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten,

roof truss, c truss, light weight steel truss...

Competitive Advantages

1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements

More Machine Photos
